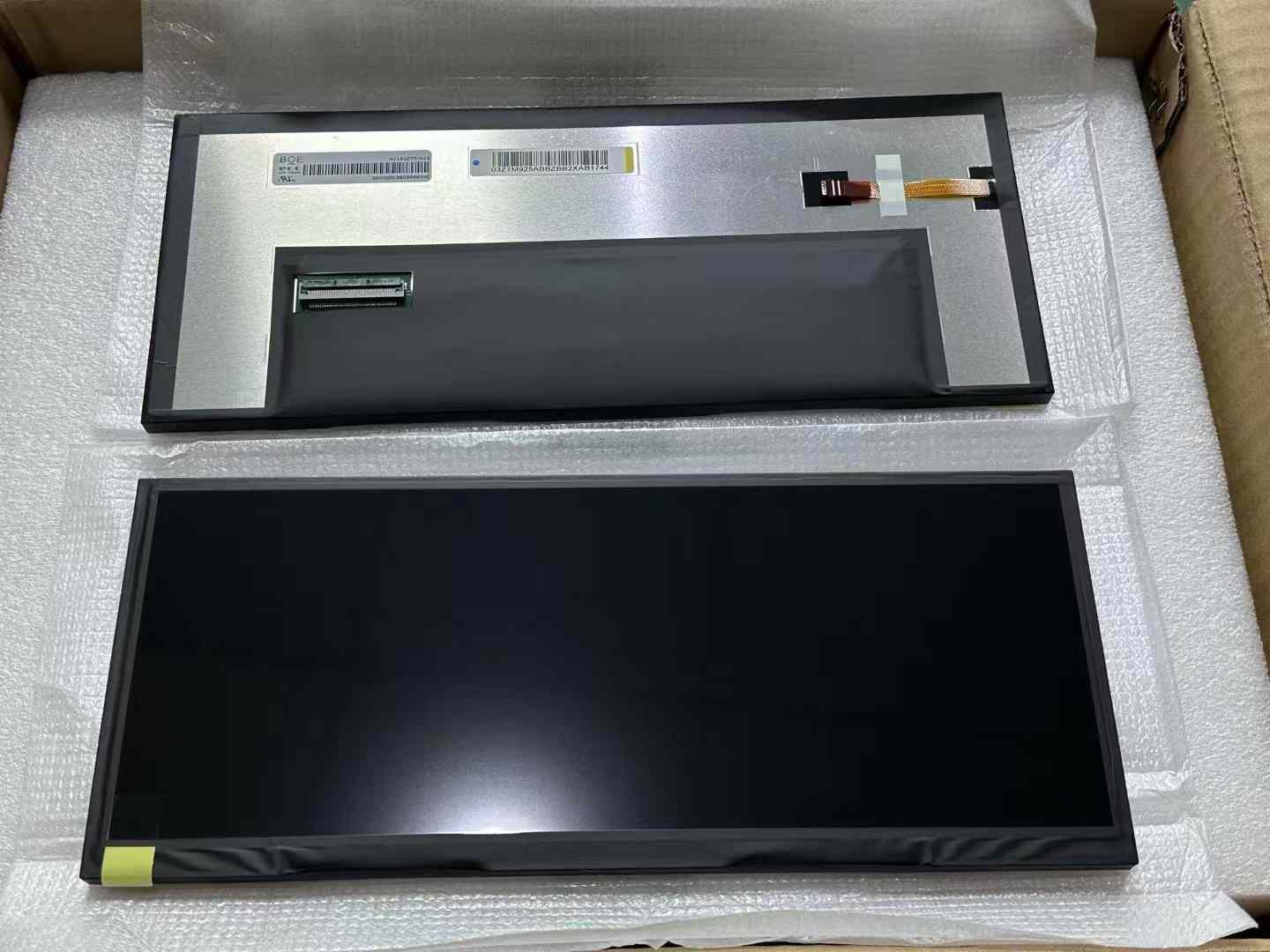

    10.3Inch BOE Car LCD Display model AV103Z7M-N13 1920*720Pixels 50pin automotive display

    Ask Lasest Price
    Brand Name : BOE
    Model Number : AV103Z7M-N13
    Certification : Rohs,CE,FCC
    Price : Negotiation
    Payment Terms : T/T,W, Western Union, MoneyGram
    Supply Ability : 3000pcs per week
    Delivery Time : 4-5 working day
    • Product Details
    • Company Profile

    10.3Inch BOE Car LCD Display model AV103Z7M-N13 1920*720Pixels 50pin automotive display

    10.3Inch BOE Car LCD Display model AV103Z7M-N13 1920*720Pixels 50pin automotive display


    BOE Technology Group Co., Ltd. (hereafter called BOE) AV103Z7M-N13-3850 (Alias: COG-CHSDT002-01) is a 10.3 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 85°C . It's general features are summarized by Einklcd in the following: Wide Temperature, Hight Brightness, WLED Backlight, Bar Display, U/D,L/R Reverse . Based on its features, Einklcd recommend that this model be applied to Automotive Display etc. According to the information stored in Einklcd this model mass production on Q3, 2019, Now this model is in production. We inputted this model's specification on Mar 22 2021 for the first time, and the latest update on Sep 8 2023. If you want to embed AV103Z7M-N13-3850 LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The AV103Z7M-N13-3850 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.


    Brand:BOE
    Model P/N: AV103Z7M-N13-3850
    Diagonal Size:10.3"Panel Typea-Si TFT-LCD, LCM
    Resolution:1920(RGB)×720 200PPI Pixel
    Format: RGB Vertical Stripe
    Active Area: 243.648(W)×91.368(H) mm
    Bezel Opening-
    Outline(mm)
    Luminance
    Viewing Angle
    Good View at
    Color Depth
    Mass
    Refresh Rate
    256.748(W)×107.068(H)×10.5(D)
    850 (Typ.)(cd/m²)
    85/85/85/85 (Min.)(CR≥10) Left / Right / Up / Down
    Symmetry
    16.7M 75% NTSC
    -
    60Hz
    120Hz (60HZ Input) : Embedded MEMC Circuit
    120Hz+120Hz : 120Hz Panel+120Hz Backlight
    240Hz (60HZ Input) : Embedded MEMC Circuit
    Treatment
    Contrast Ratio
    Work Mode
    Response
    Backlight
    Used for
    Touchscreen
    -
    1000 : 1 (Typ.) (TM)
    HADS, Normally Black, Transmissive
    IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
    VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
    25 (Typ.)(Tr+Td) ms
    9S3P WLED , No Driver
    Automotive Display
    Without
    Signal Type LVDS (2 ch, 8-bit) , 50 pins Connector
    Voltage Supply 3.3V (Typ.)
    Max. Ratings Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 85 °C
