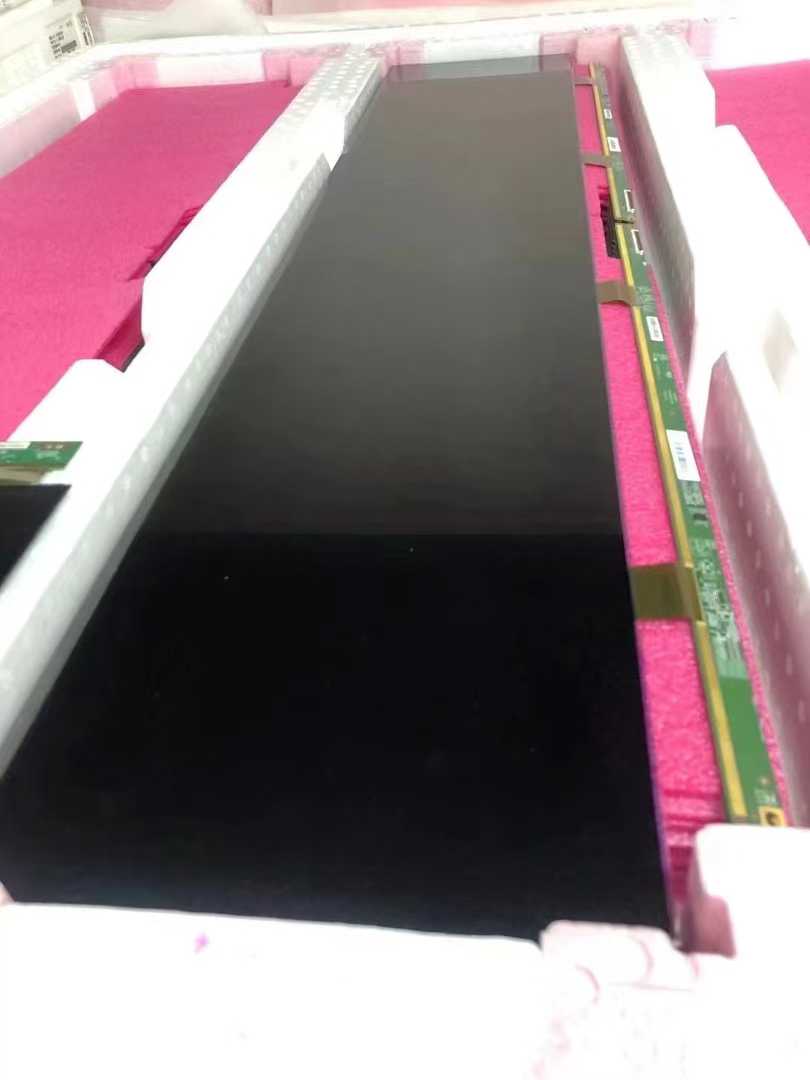

Digital signage lcd panel BOE 24inch Stretched LCD Display QV240FBM-N10 30 Pin Monitor 1920*360pixels

The QV240FBM-N10 is a 24.0 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: WLED Backlight, Bar Display, Reverse I/F, Matte , Energy Star 6.0 Compliance. Based on its features, einklcd recommend that this model be applied to Digital Signage, Stretched Bar LCD etc. According to the information stored in einklcd this model mass production on Q4, 2023, Now this model is in production. We inputted this model's specification on Apr 12 2024 for the first time, and the latest update on Mar 6 2025. If you want to embed QV240FBM-N10 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The QV240FBM-N10 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand :BOE

Model P/N: QV240FBM-N10
Diagonal Size: 24.0" (1/3 cut of 27.0")

Panel Type: a-Si TFT-LCD, LCM
Resolution1920(RGB)×360 81PPI

Pixel Format: RGB Vertical Stripe
Active Area 597.888(W)×112.104(H) mm

Bezel Opening-
Outline Dim.612.7(H)×132.1(V) ×13.3(D) mm

TreatmentAntiglare (Haze 25%)
Luminance: 300 cd/m² (Typ.)

Contrast Ratio 1200:1 (Typ.) (TM)
View Direction Symmetry

Response Time 30 (Typ.)(Tr+Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode ADS, Normally Black, Transmissive
Support Color 16.7M 72% NTSC

Light Source: WLED , 30K hours , W/O Driver
Weight 1.35Kgs (Typ.)

Designed For: Digital Signage Stretched Bar LCD
Frame Rate: 60Hz

Touch Panel:Without
Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ;

Storage Temperature: -20 ~ 60 °C
