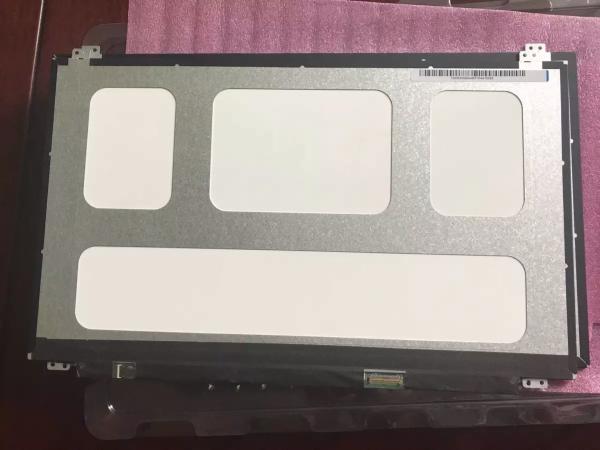

BOE 15.6inch desktop lcd monitor NV156FHM-T10 (BOE0716) 1920(RGB)×1080, FHD, 141PPI ,40PIN 250 cd/m² ePD 262K colors

NV156FHM-T10 (Product Code: BOE0716) is a 15.6" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , touchscreen On-Cell Touch. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by EINKLCD in the following: WLED Backlight, With LED Driver, Reverse I/F, Glossy , Hefei version without cover lens, Chongqing vesion with cover lens for . Based on its features, EINKLCD recommend that this model be applied to Laptop etc. According to the information stored in Einklcd this model mass production on Q1, 2017, Now this model is in production. We inputted this model's specification on Mar 21 2018 for the first time, and the latest update on Oct 16 2020. If you want to embed the Assembly in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of NV156FHM-T10. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Einklcd engineers according to datasheet, but mistakes maybe made during inputting.

• Panel Brand
  BOE
• Panel Model
  NV156FHM-T10 (BOE0716)

• Panel Size
  15.6"
• Panel Type
  a-Si TFT-LCD, Assembly

• Resolution
  1920(RGB)×1080, FHD, 141PPI
• Pixel Format
  RGB Vertical Stripe

• Display Area
  344.16(W)×193.59(H) mm
• Bezel Opening
  -

• Outline Size
  373.5(W)×236.7(H) ×4.35(D) mm
• Surface
  Glare (Haze 0%), Hard coating (3H)

• Brightness
  250 cd/m² (Typ.)
• Contrast Ratio
  800:1 (Typ.) (TM)

• Viewing Angle
  85/85/85/85 (Typ.)(CR≥10)
• Display Mode
  ADS, Normally Black, Transmissive

• Best View on
  Symmetry
• Response Time
  30 (Typ.)(Tr+Td)

• Display Colors
  262K 45% NTSC
• Lamp Type
  10S4P WLED , 15K hours , With LED Driver

• Frequency
  60Hz
• Touch Screen
  On-Cell Touch

• Shape Style
  Slim (PCBA Flat, T≤3.2mm)
• Application


• Signal Interface
• eDP (2 Lanes) , 40 pins Connector

• Input Voltage
• 3.3V (Typ.)

• Environment
• Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
