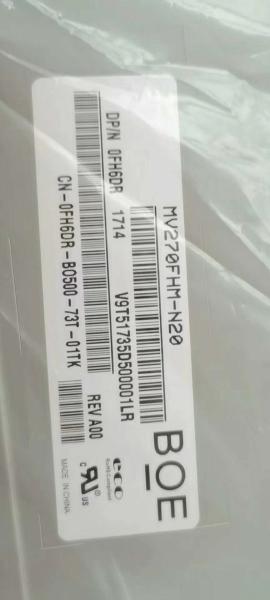

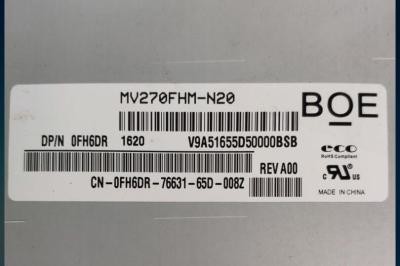

    MV270FHM-N20 1920*1080 300CD/M2 30 Pin PC LCD Module

    Ask Lasest Price
    Brand Name : BOE
    Model Number : MV270FHM-N20
    Certification : Rohs,CE,FCC
    Price : Negotiation
    Payment Terms : T/T,W, Western Union, MoneyGram
    Supply Ability : 3000pcs per week
    Delivery Time : 4-5 working day
    • Product Details
    • Company Profile

    MV270FHM-N20 1920*1080 300CD/M2 30 Pin PC LCD Module

    BOE 27Inch Desktop LCD monitor MV270FHM-N20 1920*1080Pixels Panel 300CD/M2 30Pin
    Manufacturer
    Screen Size
    Pixel Number
    Active Area(mm)
    Bezel Area(mm)
    Luminance
    Viewing Angle
    Good View at
    Color Depth
    Mass
    Refresh Rate
    BOE
    27.0 inch
    1920(RGB)×1080 (FHD)
    597.888 × 336.312 (H×V)
    601.9 × 340.4 (H×V)
    300 (Typ.)(cd/m²)
    89/89/89/89 (Typ.)(CR≥10)
    Symmetry
    16.7M 99% sRGB
    3.49Kgs
    60Hz
    Model Name
    Screen Type
    Arrangement
    Outline(mm)
    Treatment
    Contrast Ratio
    Work Mode
    Response
    Backlight
    Used for
    Touchscreen
    MV270FHM-N20
    LCM , a-Si TFT-LCD
    RGB Vertical Stripe
    611.5 × 355.8 × 13.5 (H×V×D)
    Antiglare (Haze 25%), Hard coating (3H)
    1000 : 1 (Typ.) (TM)
    ADS, Normally Black, Transmissive
    14 (Typ.)(G to G) ms
    18S4P WLED , 30K hours , No Driver
      Without
      Signal TypeLVDS (2 ch, 8-bit) , 30 pins Connector
      Voltage Supply5.0V (Typ.)
      Max. RatingsStorage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

      MV270FHM-N20 1920*1080 300CD/M2 30 Pin PC LCD ModuleMV270FHM-N20 1920*1080 300CD/M2 30 Pin PC LCD ModuleMV270FHM-N20 1920*1080 300CD/M2 30 Pin PC LCD Module


      BOE Technology Group Co., Ltd. (hereafter called BOE) MV270FHM-N20 is a 27.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: sRGB, WLED Backlight, Reverse I/F, Matte , SNB(L/R Bezel 4.8mm). Based on its features, einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q1, 2016, Now this model is in production. We inputted this model's specification on May 11 2016 for the first time, and the latest update on Sep 25 2019. If you want to embed MV270FHM-N20 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The MV270FHM-N20 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
