LG 7 Inch PDA Tablet PC LCD Module LD070WX4-SM01 800*1280 Pixels Panel 490CD/M2 34 Pin

FOCUS VISION TECHNOLOGY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap LG 7 Inch PDA Tablet PC LCD Module LD070WX4-SM01 800*1280 Pixels Panel 490CD/M2 34 Pin from wholesalers

    Buy cheap LG 7 Inch PDA Tablet PC LCD Module LD070WX4-SM01 800*1280 Pixels Panel 490CD/M2 34 Pin from wholesalers
    • Buy cheap LG 7 Inch PDA Tablet PC LCD Module LD070WX4-SM01 800*1280 Pixels Panel 490CD/M2 34 Pin from wholesalers
    • Buy cheap LG 7 Inch PDA Tablet PC LCD Module LD070WX4-SM01 800*1280 Pixels Panel 490CD/M2 34 Pin from wholesalers

    LG 7 Inch PDA Tablet PC LCD Module LD070WX4-SM01 800*1280 Pixels Panel 490CD/M2 34 Pin

    Ask Lasest Price
    Brand Name : LG
    Model Number : LD070WX4-SM01
    Certification : Rohs,CE,FCC
    Price : Negotiation
    Payment Terms : T/T,W, Western Union, MoneyGram
    Supply Ability : 3000pcs per week
    Delivery Time : 4-5 working day
    • Product Details
    • Company Profile

    LG 7 Inch PDA Tablet PC LCD Module LD070WX4-SM01 800*1280 Pixels Panel 490CD/M2 34 Pin

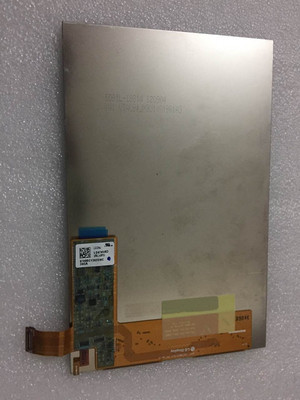

    LG 7inch PDA Tablet PC LCD screen LD070WX4-SM01,800*1280 Pixels Panel 490CD/M2 34 Pin
    • Panel Brand
      LG Display
    • Panel Model
      LD070WX4-SM01
    • Panel Size
      7.0"
    • Panel Type
      a-Si TFT-LCD, LCM
    • Resolution
      800(RGB)×1280 , WXGA
    • Pixel Format
      RGB Vertical Stripe
    • Display Area
      94.2(W)×150.72(H) mm
    • Bezel Opening
      -
    • Outline Size
      104.32(W)×161.67(H) ×3.57(D) mm
    • Surface
      Hard coating
    • Brightness
      490 cd/m² (Typ.)
    • Contrast Ratio
      800:1 (Typ.) (TM)
    • Viewing Angle
      85/85/85/85 (Typ.)(CR≥10)
    • Display Mode
      IPS, Normally Black, Transmissive
    • Best View on
      Symmetry
    • Response Time
      50 (Max.)(Tr+Td)
    • Display Colors
      16.7M
    • Lamp Type
      5S5P WLED , Without Driver
    • Frequency
      60Hz
    • Touch Screen
      Without
    • Panel Weight
      85.0g (Max.)
    • Application
    • Signal Interface
    • MIPI (4 data lanes) , 34 pins , Connector
    • Input Voltage
    • 3.3V (Typ.)
    • Environment
    • Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C

    LD070WX4-SM01 (Alias: LD070WX4 (SM)(01)) is a 7.0" diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C . It's general features are summarized by einklcd in the following: Portrait type, WLED Backlight , for Amazon Kinder Fire 7HD. Based on its features, Panelook recommend that this model be applied to Pad & Tablet etc. According to the information stored in einklcd this model mass production on Q2, 2013, Now this model is in production. We inputted this model's specification on Apr 4 2013 for the first time, and the latest update on Apr 19 2018. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's agent to learn lateast production and specification detail of LD070WX4-SM01. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.


    LG 7 Inch PDA Tablet PC LCD Module LD070WX4-SM01 800*1280 Pixels Panel 490CD/M2 34 PinLG 7 Inch PDA Tablet PC LCD Module LD070WX4-SM01 800*1280 Pixels Panel 490CD/M2 34 Pin
