Brand

Innolux

Model

N070ICN-GB1

Diagonal Size

7.0 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

800(RGB)×1280 [WXGA]

Configuration

RGB Vertical Stripe

Active Area

94.2(H)×150.72(V) mm

Outline Dim.

105.62(H)×163.27(V) ×4.56(D) mm

Bezel Area

97.35(H)×153.82(V) mm

Treatment

Glare (Haze 0%), Hard coating (3H)

Luminance

300 cd/m² (Typ.)

Contrast Ratio

800:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

11/9 (Typ.)(Tr/Td)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Operating Mode

IPS, Normally Black, Transmissive

Support Color

16.7M 60% NTSC

Light Source

WLED [3S6P] , 15K hours , W/O Driver

Weight

95.0g (Max.)

Designed For

Frame Rate

60Hz

Touch Panel

Without

Interface Type

31 pins MIPI (4 data lanes) , Connector

Power Supply

1.8/3.3V (Typ.)(VDDI/VCI)

Environment

Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C

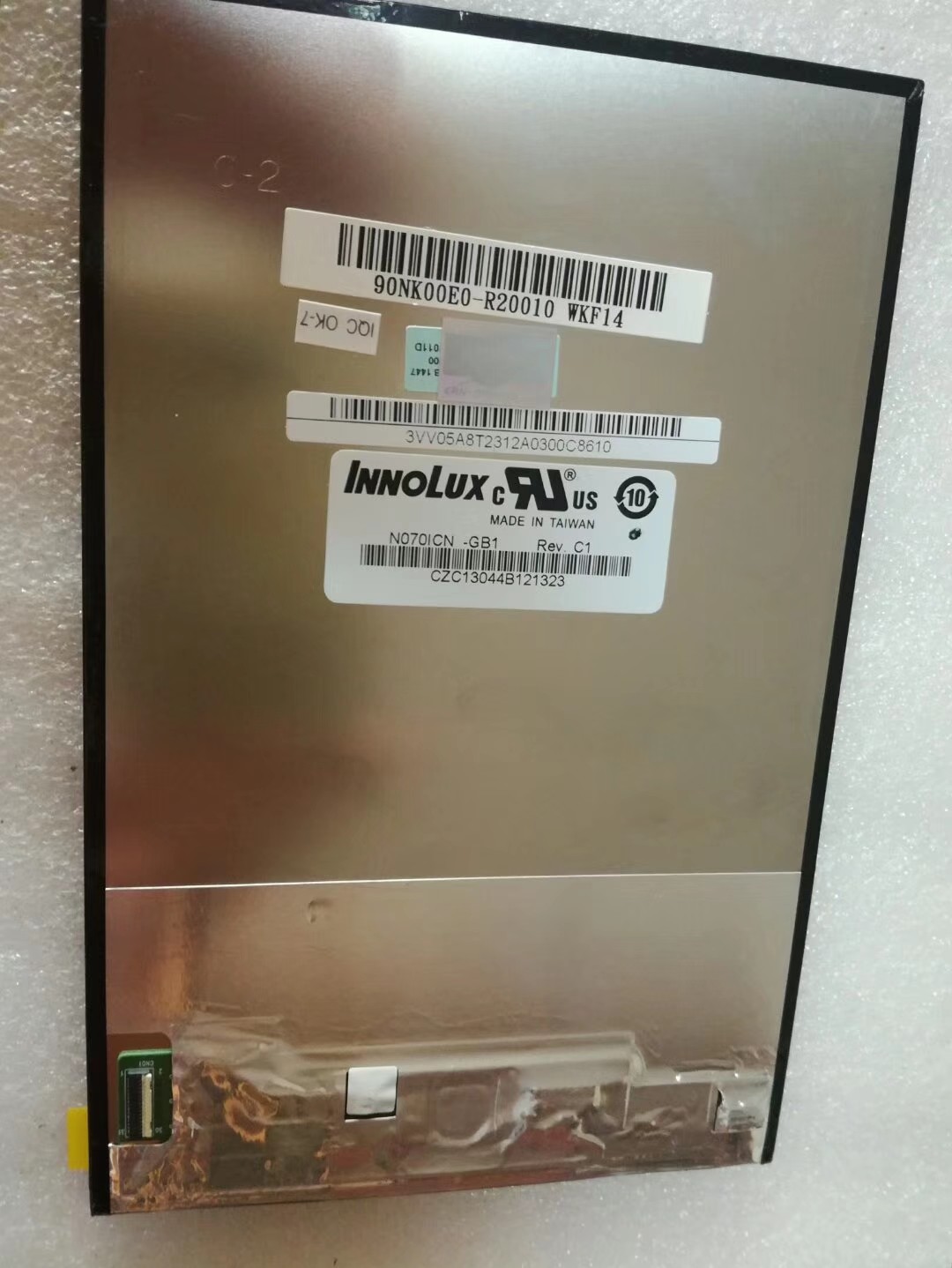

The N070ICN-GB1 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C . It's general features are summarized by einklcd in the following: Portrait type, WLED Backlight, Glossy . Based on its features, einklcd recommend that this model be applied to Pad & Tablet etc. According to the information stored in einklcd this model mass production on Q2, 2013, Now this model is in production. We inputted this model's specification on Nov 7 2013 for the first time, and the latest update on Jul 2 2018. If you want to embed N070ICN-GB1 LCM in your future product, einklcd strongly recommend that you should contact with Innolux or it's agent to learn lateast production and specification detail. The N070ICN-GB1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
