• Manufacturer	LG Display	Model Name	LC320DXY-SHAA
  Screen Size	31.5 inch	Screen Type	CELL , a-Si TFT-LCD
  Pixel Number	1366(RGB)×768 (WXGA)	Arrangement	RGB Vertical Stripe
  Active Area(mm)	697.685 × 392.256 (H×V)	Outline(mm)	715 × 411 × 1.3 (H×V×D)
  Bezel Area(mm)	-	Treatment	Antiglare (Haze 3%), Hard coating (2H)
  Luminance	0 cd/m²	Contrast Ratio	1200 : 1 (Typ.) (TM)
  Viewing Angle	89/89/89/89 (Min.)(CR≥10)	Response	7 (Typ.)(G to G) ms
  Good View at	Symmetry	Work Mode	IPS, Normally Black, Transmissive
  Glass Thickness	-	Transmissivity	6.45% (Typ.)(with Polarizer)
  Color Depth	16.7M	Backlight	No B/L
  Mass	0.86/0.91Kgs (Typ./Max.)	Used for
  Refresh Rate	60Hz	Touchscreen	Without
  Signal Type	LVDS (1 ch, 8-bit) , Connector , 30 pins
  Voltage Supply	12.0V (Typ.)
  Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

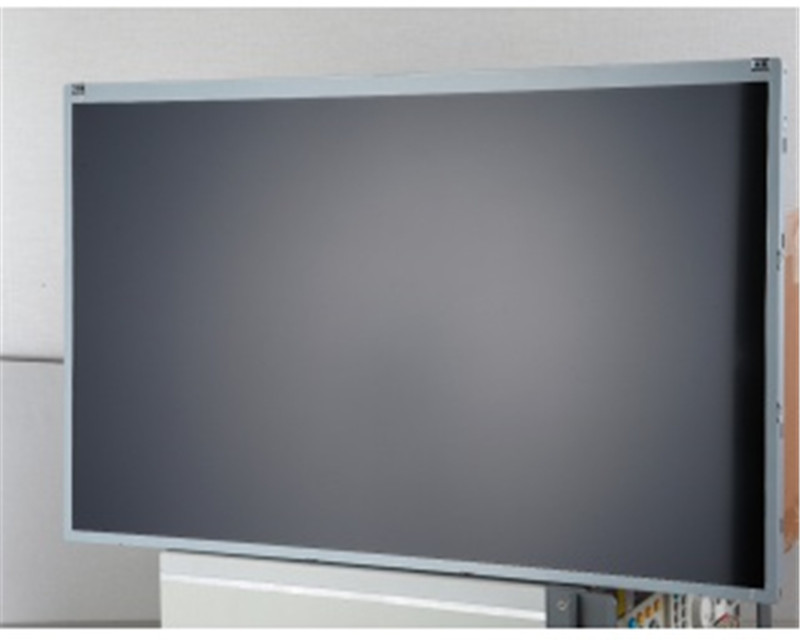

LC320DXY-SHAA (Alias: LC320DXY (SH)(AA)) is a 31.5" diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: Antiglare Surface, Wide Viewing Angle, Landscape type, Wide Aspect Ratio . Based on its features,einklcd recommend that this model be applied to TV Sets etc. Now this model is in production. We inputted this model's specification on May 20 2019 for the first time. If you want to embed the CELL in your future product, einklcdstrongly recommend that you should contact with LG Display or it's agent to learn lateast production and specification detail of LC320DXY-SHAA. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

All Origianl product will be send to customer after full test one by one.

• Spec details can be send to you via email,please contact us.
