BOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd Monitor

FOCUS VISION TECHNOLOGY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap BOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd Monitor from wholesalers

    Buy cheap BOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd Monitor from wholesalers
    • Buy cheap BOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd Monitor from wholesalers
    • Buy cheap BOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd Monitor from wholesalers
    • Buy cheap BOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd Monitor from wholesalers

    BOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd Monitor

    Ask Lasest Price
    Brand Name : BOE
    Model Number : DV210FBM-N00
    Certification : Rohs,CE,FCC
    Price : Negotiation
    Payment Terms : T/T,W, Western Union, MoneyGram
    Supply Ability : 3000pcs per week
    Delivery Time : 4-5 working day
    • Product Details
    • Company Profile

    BOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd Monitor

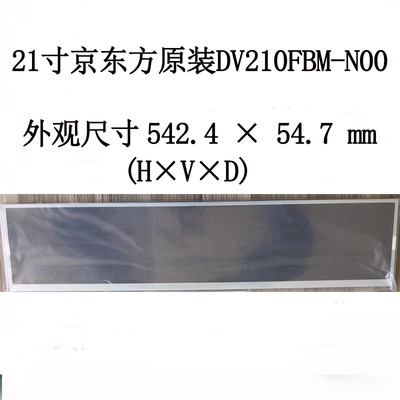

    • BOE lcd bar display 21" DV210FBM-N00 stretched monitor display 300CCD/M2 1920*132ixels for smart cabinet
    • BOE
    • Model
      DV210FBM-N00
    • Diagonal Size
      20.9 inch
    • Type
      a-Si TFT-LCD, LCM
    • Pixel Format
      1920(RGB)×132
    • Configuration
      RGB Vertical Stripe
    • Active Area
      529.416(H)×36.3974(V) mm
    • Outline Dim.
      542.4(H)×54.7(V) mm
    • Bezel Area
      -
    • Treatment
      Antiglare (Haze 25%)
    • Luminance
      300 cd/m² (Typ.)
    • Contrast Ratio
      1200:1 (Typ.) (TM)
    • View Direction
      Symmetry
    • Response Time
      8 (Typ.)(G to G)
    • Viewing Angle
      89/89/89/89 (Typ.)(CR≥10)
    • Operating Mode
      HADS, Normally Black, Transmissive
    • Support Color
      16.7M 73% (CIE1931)
    • Light Source
      WLED , 30K hours , With LED Driver
    • Weight
      500g (Typ.)
    • Designed For
      BOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd Monitor
    • Frame Rate
      60Hz
    • Touch Panel
      Without
    • Interface Type
    • 40 pins LVDS (2 ch, 8-bit) , Connector
    • Power Supply
    • 12.0V (Typ.)
    • Environment
    • Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
    • BOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd MonitorBOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd MonitorBOE High Brightness Stretched LCD Display, 40 Pin Stretched Lcd Monitor

    All our LCD LED screen monitor module panel products will be full test one by one before sending .
