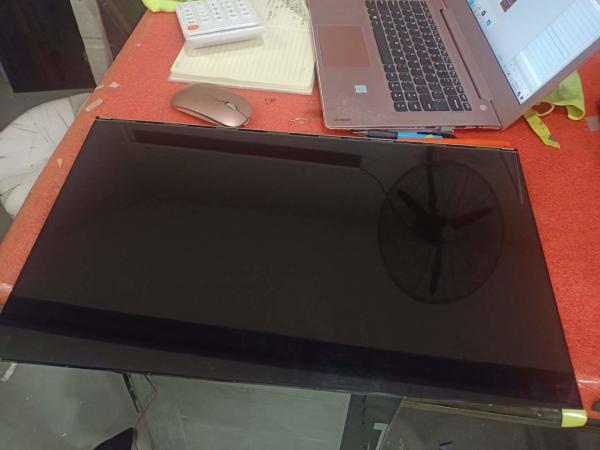

BOE 92PPI Desktop Monitor Module 23.8Inch MV238FHM-NF1 1920×1080 350CD/M2 92PIN

The MV238FHM-NF1 is a 23.8 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: sRGB, 3-side boderless, WLED Backlight, Reverse I/F, Matte , 3-side Borderless; TUV low blue light panel. Based on its features, einklcd recommend that this model be applied to Desktop Monitor, Gaming etc. According to the information stored in einklcd this model mass production on Q1, 2022, Now this model is in production. We inputted this model's specification on Dec 16 2021 for the first time. If you want to embed MV238FHM-NF1 LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The MV238FHM-NF1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Manufacturer

BOE

Model Name

MV238FHM-NF1

Screen Size

23.8 inch

Screen Type

LCM, a-Si TFT-LCD

Pixel Number

1920(RGB)×1080 (FHD) 92PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

527.04 × 296.46 (H×V)

Outline(mm)

535 × 313 × 13.7 (H×V×D)

Bezel Area(mm)

-

Treatment

Antiglare (Haze 25%), Hard coating (3H)

Luminance

350 cd/m² (Typ.)

Contrast Ratio

1000 : 1 (Typ.) (TM)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Response

5 (Typ.)(G to G) ms

Good View at

Symmetry

Work Mode

ADS, Normally Black, Transmissive

Color Depth

16.7M 100% sRGB

Backlight

20S4P WLED , 30K hours , No Driver

Mass

2.20Kgs (Typ.)

Used for

Refresh Rate

167Hz

Touchscreen

Without

Signal Type

LVDS (4 ch, 8-bit) , Connector 92 pins

Voltage Supply

5.0V (Typ.)

Max. Ratings

Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
