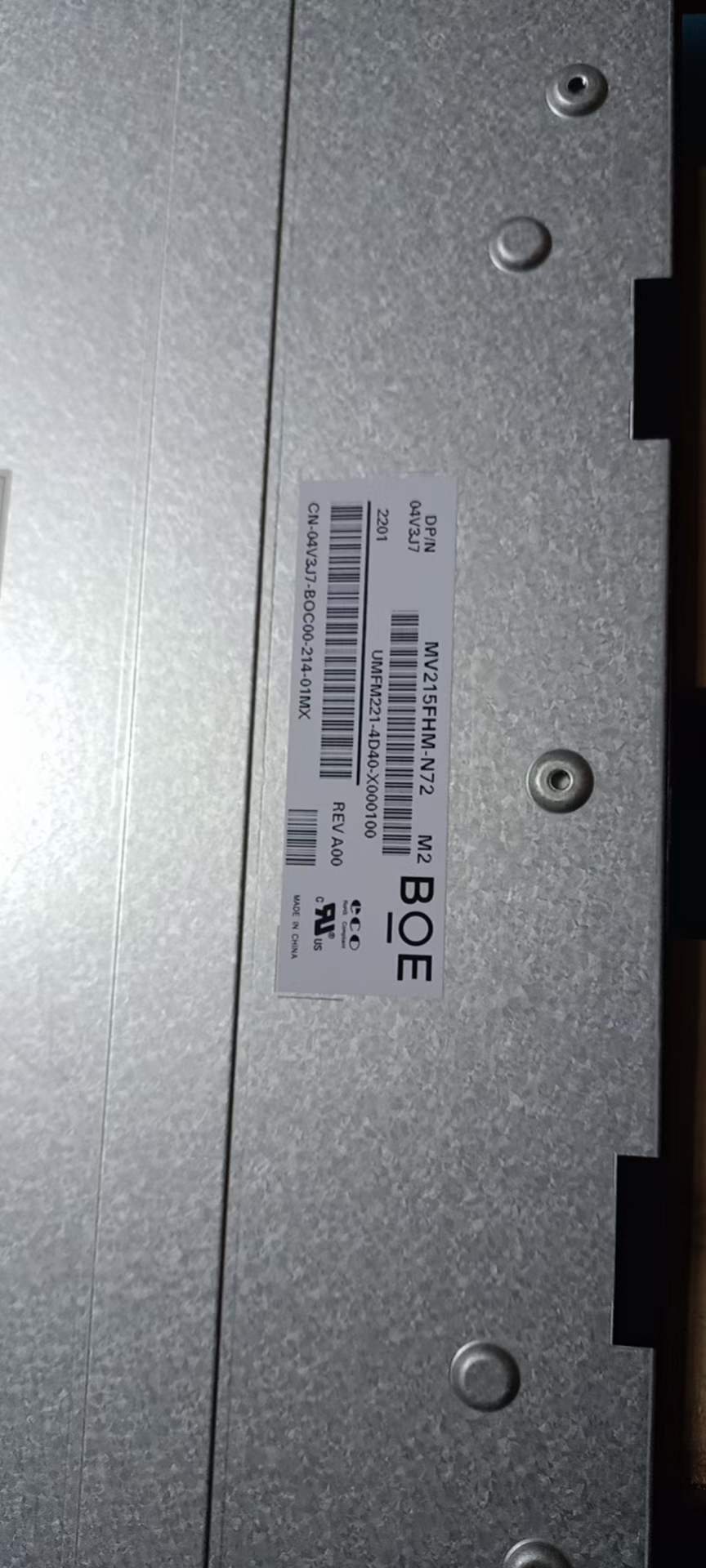

LVDS 102PPI Desktop Monitor Module BOE 21.5Inch MV215FHM-N72 1920×1080 250CD/M2 30PIN

MV215FHM-N72 is a 21.5" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: sRGB, 3-side boderless, WLED Backlight, Reverse I/F, Matte , 3-side Borderless, ES8.0, TUV Low Blue Light, Reverse type, sRGB. Based on its features, Einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in Einklcd this model mass production on Q1, 2023, Now this model is in production. We inputted this model's specification on Aug 5 2021 for the first time, and the latest update on Feb 13 2022. If you want to embed the LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of MV215FHM-N72. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by einklcd engineers according to datasheet, but mistakes maybe made during inputting.

Brand

BOE

Model

MV215FHM-N72

Diagonal Size

21.5 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

1920(RGB)×1080 [FHD] 102PPI

Configuration

RGB Vertical Stripe

Active Area

476.064(H)×267.786(V) mm

Outline Dim.

484.464(H)×284.486(V) ×12.9(D) mm

Bezel Area

-

Treatment

Antiglare (Haze 25%), Hard coating (3H)

Luminance

250 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

14 (Typ.)(G to G)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Operating Mode

ADS, Normally Black, Transmissive

Support Color

16.7M 100% sRGB

Light Source

WLED [17S4P] , 30K hours , W/O Driver

Weight

1.80Kgs (Typ.)

Designed For

Frame Rate

60Hz

Touch Panel

Without

Interface Type

LVDS (2 ch, 8-bit) , 30 pins Connector

Power Supply

5.0V (Typ.)

Environment

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
